iFlight Crystal HD Patch 5.8GHz Directional Antenna for DJI FPV Goggles (Colour-bomb Red)

$99.99
Sold Out

Calculate Shipping



Standard Shipping - $8.00
(flat rate per order)
Express Post Smaller items - $11.00
Express postage for smaller items
Express Shipping - $11.00
Fastest method

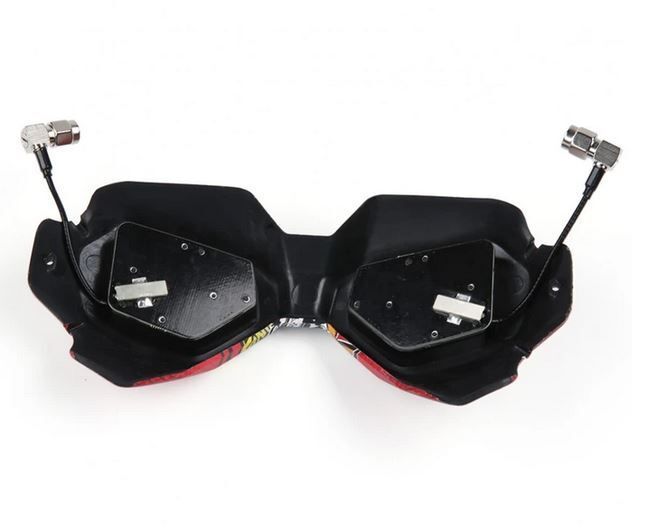

Flight Crystal HD 5.8GHz Directional Antenna. Specially designed for the DJI Digital FPV Goggles to replace the stock front plate with our iFlight engineered Antenna Array.

Let's welcome the new iFlight Crystal HD 5.8GHz Directional Antenna! Specially designed for the DJI Digital FPV Goggles to replace the stock front plate with the iFlight engineered Antenna Array. NO, this is not another patch antenna! Two carefully designed and highly sensitive LHCP high gain directional antennas provide better reception at long range as well as better penetration through trees, bandos, or other difficult terrains.

Low profile design to keep pack size to a minimum, and high-quality RG178 cables for best durability. iFlight was able to achieve a super-wide antenna beamwidth through an offset angle of 30 degrees between the two antennas. Horizontal beam of 105° and vertical beam of 75 degrees at 9dBi gain, dropping off slowly to the side! Low loss with a 93% antenna efficiency and an axial ratio of ≤1.6 through the whole band. If that's not enough, iFlight also gives users the option to either mount their antennas at the bottom or top pair of the Goggle RP-SMA connectors. Multiple designs available, get them as long they last!



Features:

  • 3 designs available, Black Carbon, Blue Sticker Design, Red/Yellow Color Design.
  • LHCP high gain directional antenna array.
  • Lower profile and better reception than stock antennas.
  • Super wide beamwidth, horizontal 105° @9dBi, vertical 75° @9dBi.
  • Can be mounted on top or bottom goggle RP-SMA pair.

Patch Specifications:

  • Frequency: 5.8GHz
  • Bandwidth: 5600~5900 Mhz
  • Gain: 9 dBi Axial ratio: ≤1.6
  • Impedance: 50Ω
  • Radiation Efficiency: 93%
  • Beam Width: 105° H. 75° V.
  • Polarization: (LHCP) Left Hand Circularly Polarized
  • Cable: RG178
  • Connector: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
  • Dimensions: 16mm x 7mm x 3mm
  • Weight: 52.1g

Omni Specifications:

  • Model: Crystal LHCP Short Omni Antennas
  • Frequency range: 5000-6000MHz
  • Gain: 3Dbi
  • Cable:RG141
  • Axial Ratio: 0.7
  • Weight: 4.2g/pc
  • Interface: LHCP RP-SMA
  • Polarization: LHCP
  • SWR: ≤1.5 (ON 5.8GHz)
  • Color: Black bomb design/color bomb design
