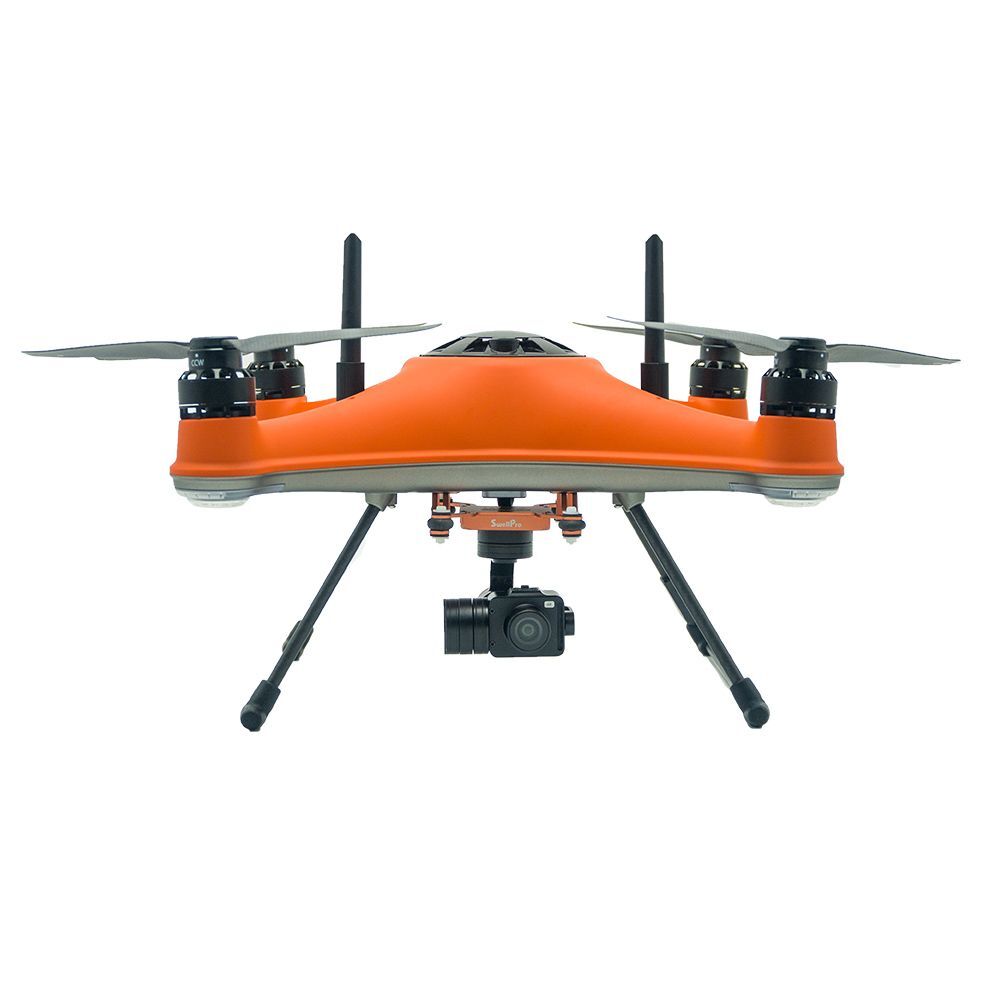

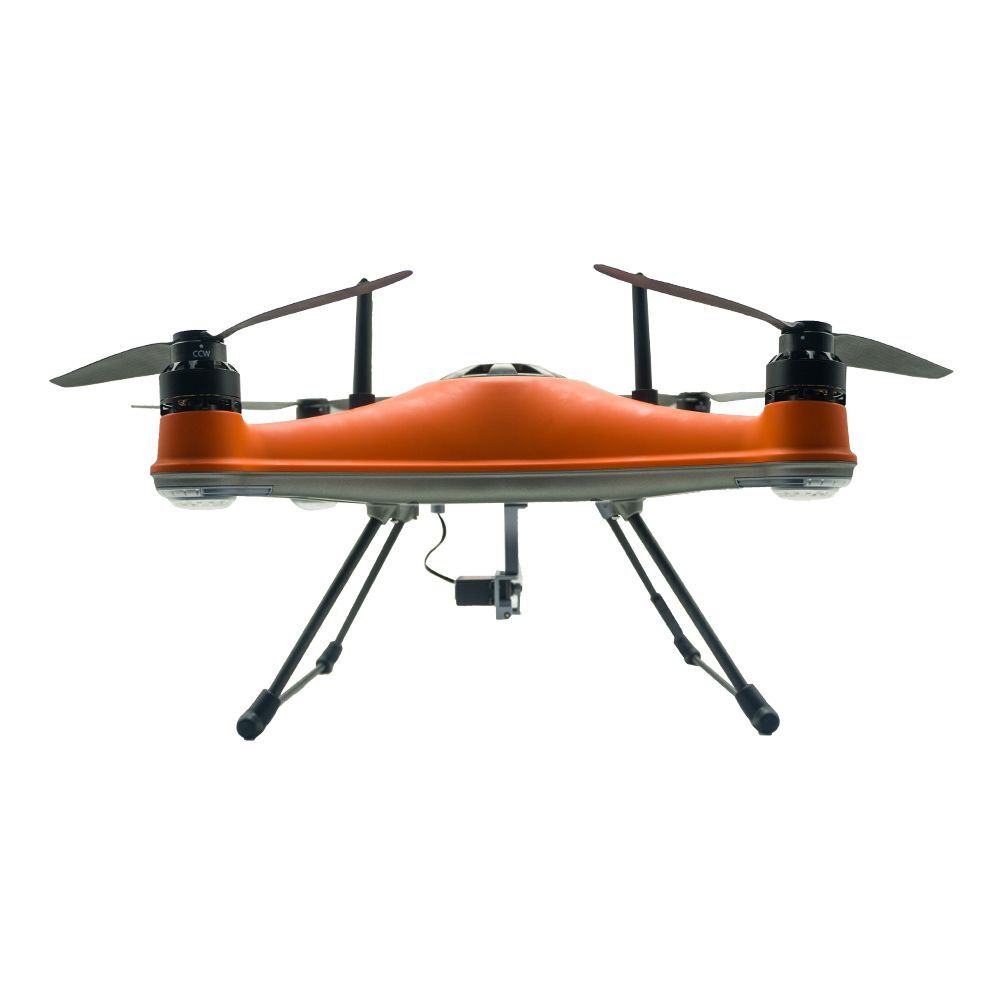

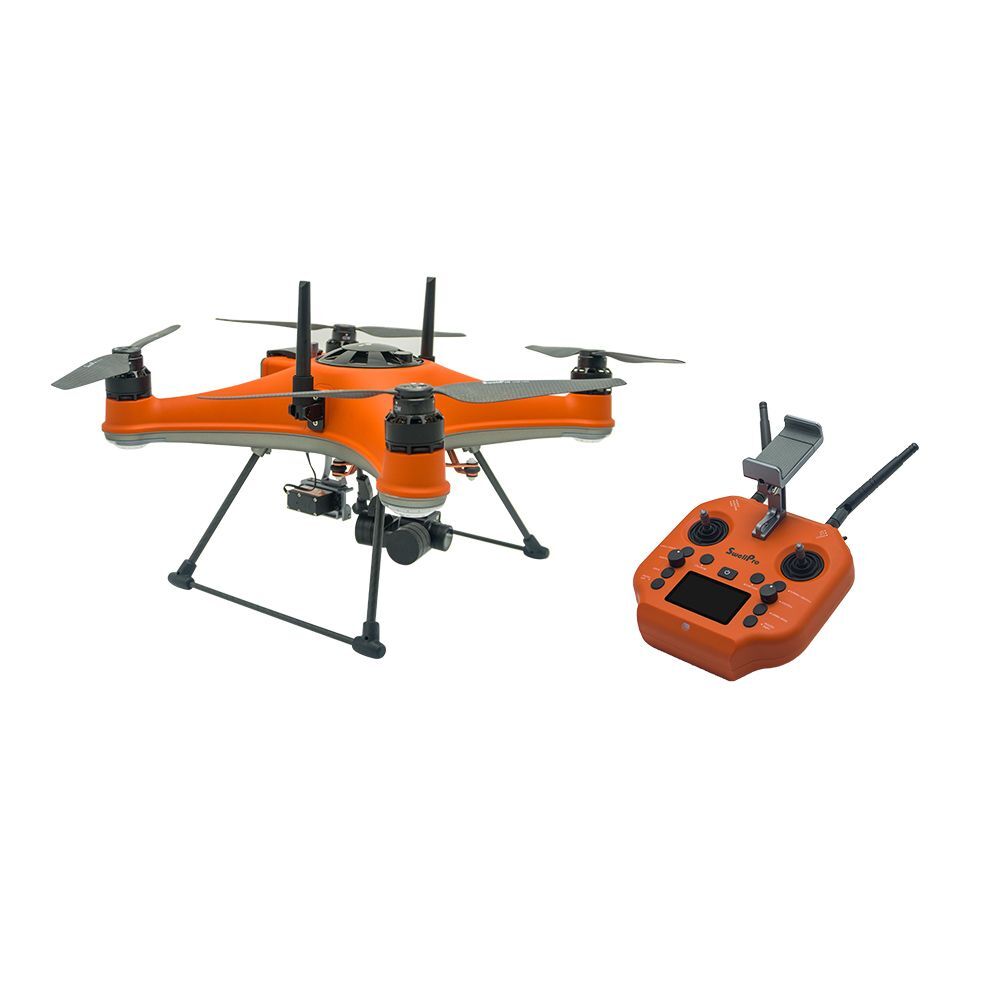

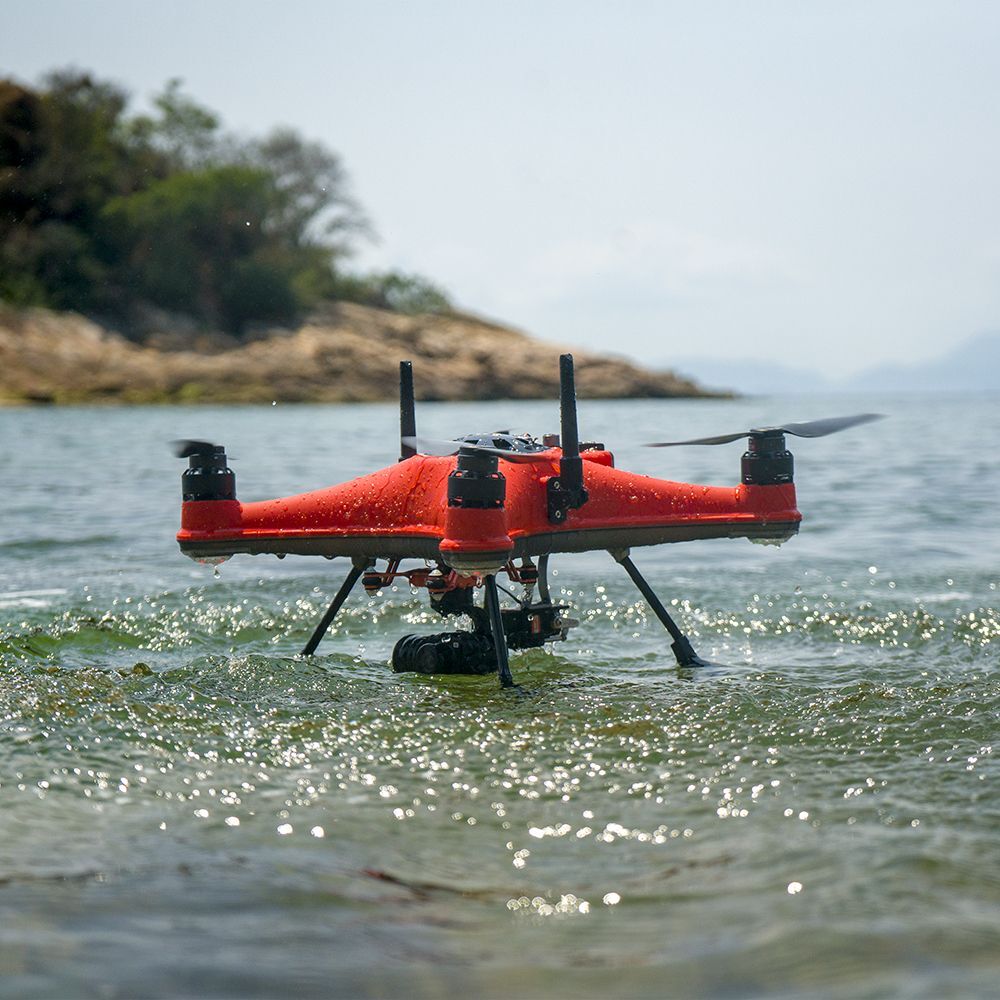

Swellpro Splash Drone 4 - drone fishing Excludes gimbal and camera
Calculate Shipping
Standard Shipping - $8.00
(flat rate per order)
Express Post Smaller items - $11.00
Express postage for smaller items
Express Shipping - $11.00
Fastest method
NOTE THIS IS A PRE-ORDER ITEM and is expected aroumd mid july
Please note this is without a payload release, or a camera, you will need to purchase these seperately
Aircraft
Waterproof Rating:IP67
Drone Weight (include battery and propellers)2.18 kg
Axis Diameter:450 mm
Max Ascend Speed:4 m/s
Max Descend Speed:4 m/s
Max Flight Speed:22 m/s (ATTI)); 10 m/s (GPS)
Max Tilt Angle:12.5° (ATTI); 25° (ATTI fast)
Max Takeoff Altitude:120m (GPS) / ATTI - no limitation
Max Wind Speed Resistance:8 m/s (11-16knots)(F4); 14 m/s (F7) peak gust
Max Flight Time:30 mins (no wind & no load) (approx. 25 mins with GC3-S, approx.15 mins with load of 1.5kg)
Max Flight Distance:5.0 km
Max Payload Capacity:2.0 kg
Propellers:#1242 carbon fiber quick release propellers
Operating Frequency:5180 - 5875 MHz
Transmitter Power (EIRP):FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Working Temperature:-10℃ ~ 40℃
Satellite Positioning Systems:GPS/GLONASS
Hovering Precision:±0.5 m (vertical); ±0.5 m (horizontal)
Pass-through Serial Port:Connect to a third-party device and transfer the data of the third-party device to the remote control
UART:Allows for TTL serial port to TCP, support baud rate of 115200
Wi-Fi Hotspot:IP: 192.168.1.101:2222
Power Input:12V/2A | 5V/2A
Remote Control
Waterproof Rating:IP66
Operating Frequency:5180 - 5875 MHz
Transmitter Power (EIRP):FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
Real-time Video Transmission:720P@30fps
Latency:200 ms (It depends on the actual shooting environment and mobile devices)
Battery:2S 3600mAh
Working Time:7 hours
Working Current/Voltage:0.3A/7.4V
Ethernet Port:IP: 192.168.2.220:2222
Wi-Fi Hotspot:IP: 192.168.2.220: 2020; Default password: 12345678
Mobile Device Mount:Suitable for any size phones; Tablets require a larger mount (sold separately)
Screen:2.68 inch, 128x64
Working Temperature:-10℃ - 40℃
Remote Charging time:3 hours
Power Input:5V/2A
Intelligent Battery
Nominal Capacity:6600mAh
Voltage:14.8V
Type:Intelligent 4S LiPo
Watt Hours:97.68 Wh
Size:153.6*82.4*48.3mm
Weight:735 g (±5 g)
Working Temperature:-10℃ - 40℃
Charging Time:1.5 hour
Max Charging Power:84 W
Charger
Input:100 – 240V, 50/60Hz
Output:16.8V@Dynamic Current / 5V@1.5A
Rated Power:84.5 W
Mobile Device connection
Operation Frequency:5180 - 5875 MHz
Max Transmission Distance:10 m (Unobstructed, free of interference)
APP
Mobile App Name:NaviFly
Live View Quality:720p@30fps
Latency:＜ 250 ms (depending on environmental conditions and mobile devices)
3-Axis Gimbal Camera (GC3-S)
Waterproof:IP67
Axis:3 axis (pitch, roll, yaw)
Pitching Angle:-90° to 0°
Maximum Control Speed:Pitch 60°/s
Weight:Approx. 310g
Size:113*92*110mm
Image Sensor:1/2.3" 12M SONY CMOS
Lens:F4.53mm f/2.65, FOV: 92.6°
ISO range:100 - 3200
Shutter Speed:16 - 1/16000 s
Photo Resolution:4:3/16:9 12M pixel
Photo Shooting Mode:A single shot
Burst Photo:3/5/10 pcs
Interval Photo:1/3/5/10s
Video Resolution:4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120p | HD: 1280*720/240p
Max Video Stream:64 mbps
Photo Format:JPEG / DNG
Video Format:MP4, MOV
Support Memory Card:Micro-SD card with a maximum capacity of 128GB, write speed ≥15 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature:-10℃ to 40℃
1-Axis Gimbal Camera (GC1)
Waterproof:IP67
Axis:1 axis (pitch)
Pitch angle:-90° to 0°
Maximum control speed:Pitch 60°/s
Weight:Approx. 145g
Size:71*55*65mm
Image Sensor:1/2.3" 12M SONY CMOS
Lens:F4.53mm f/2.65, FOV: 92.6°
ISO Range:100 - 3200
Shutter Speed:16 - 1/16000 s
Photo Resolution:4:3/16:9 12M pixel
Burst Photo:3/5/10 pcs
Interval Photo:1/3/5/10s
Video Resolution:4K: 3840*2160/30P | 2.7K: 2704*1520/60P | FHD: 1920*1080 30/60/120P | HD: 1280*720/240P
Max Video Stream:64 Mbps
Photo Format:JPEG / DNG
Video Format:MP4 / MOV
Support Memory Card:Micro SD CARDS with a maximum capacity of 128GB, write speed ≥60 MB/s, supports Class 10 or above & UHS-1 rating
Working Temperature:-10℃ to 40℃
2-Axis Low-Light Gimbal Camera (GC2-S)
Waterproof:IP67
Weight:Approx.220g
Size:113*92*80mm
Image Sensor:1/2" 2M Starlight CMOS
Lens:FOV: 66°
Burst Photo:3/5/10pcs
Interval Photo:1/3/5/10s
Video Resolution:FHD: 1920*1080 30/60P | HD: 1280*720 120/60P
Max Video Stream:64 Mbps
Photo Format:JPEG
Video Format:MP4 / MOV
Support Memory Card:Micro SD CARDS with a maximum capacity of 128GB, write speed ≥65 MB/s, supports Class 10 or above & UHS-1 rating
Working temperature:-10℃ to 40℃
Payload Release (PL1-S)
Waterproof Rating:IP67
Weight:96 g
Size:59*38*50mm
Max. loading weight:2 kg
(17564)
| SKU | 17564 |
| Brand | swellpro |
